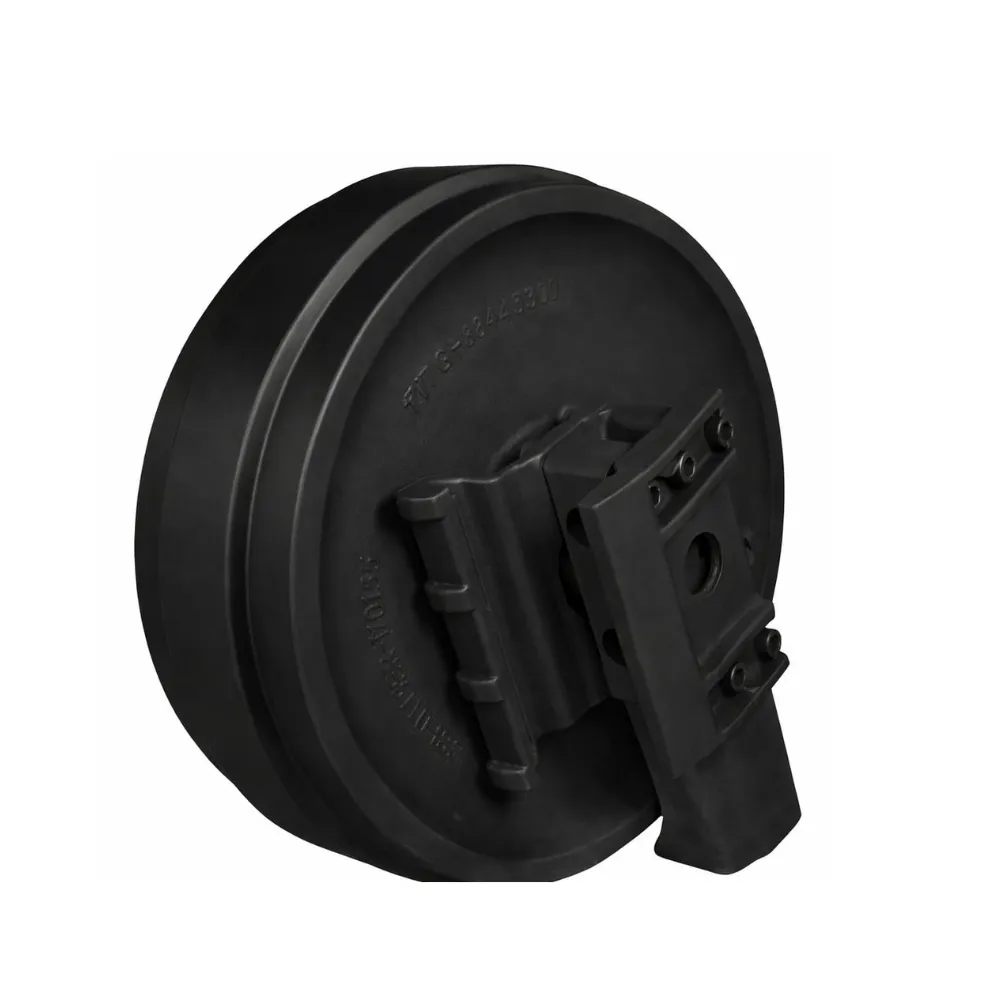

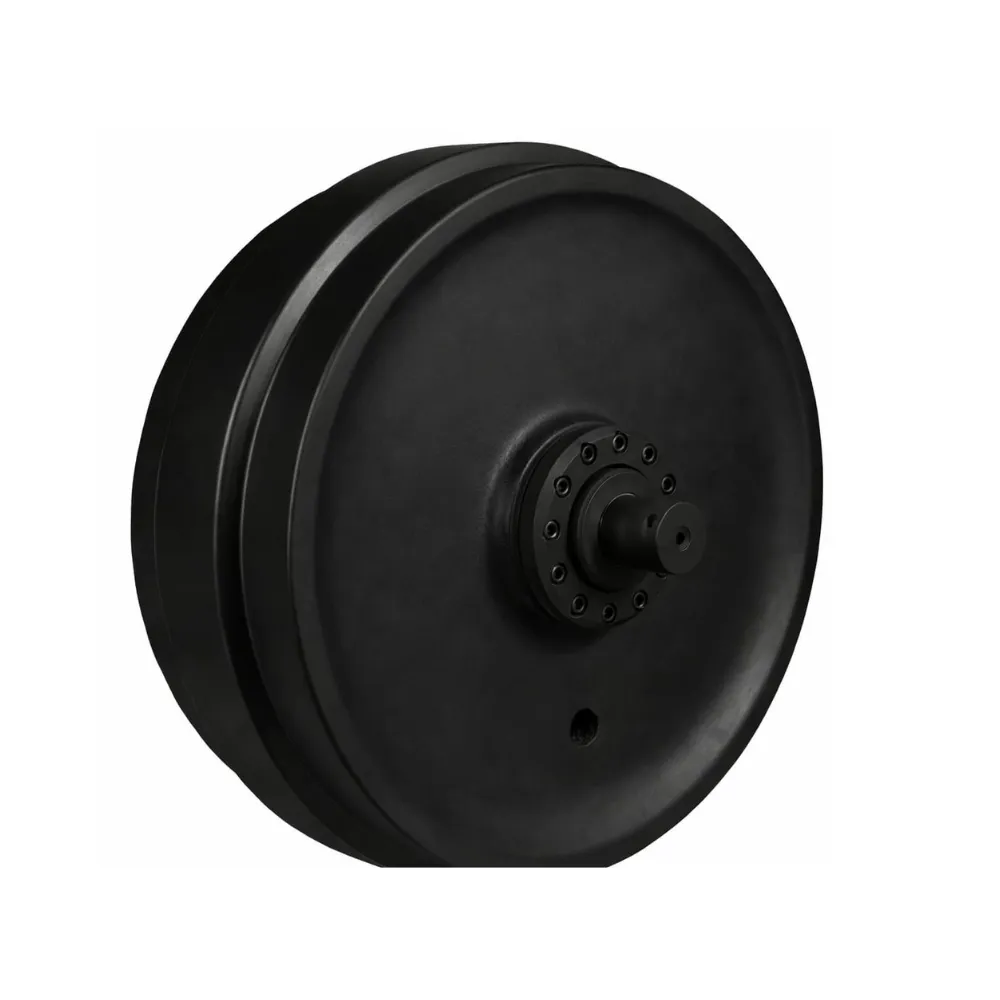

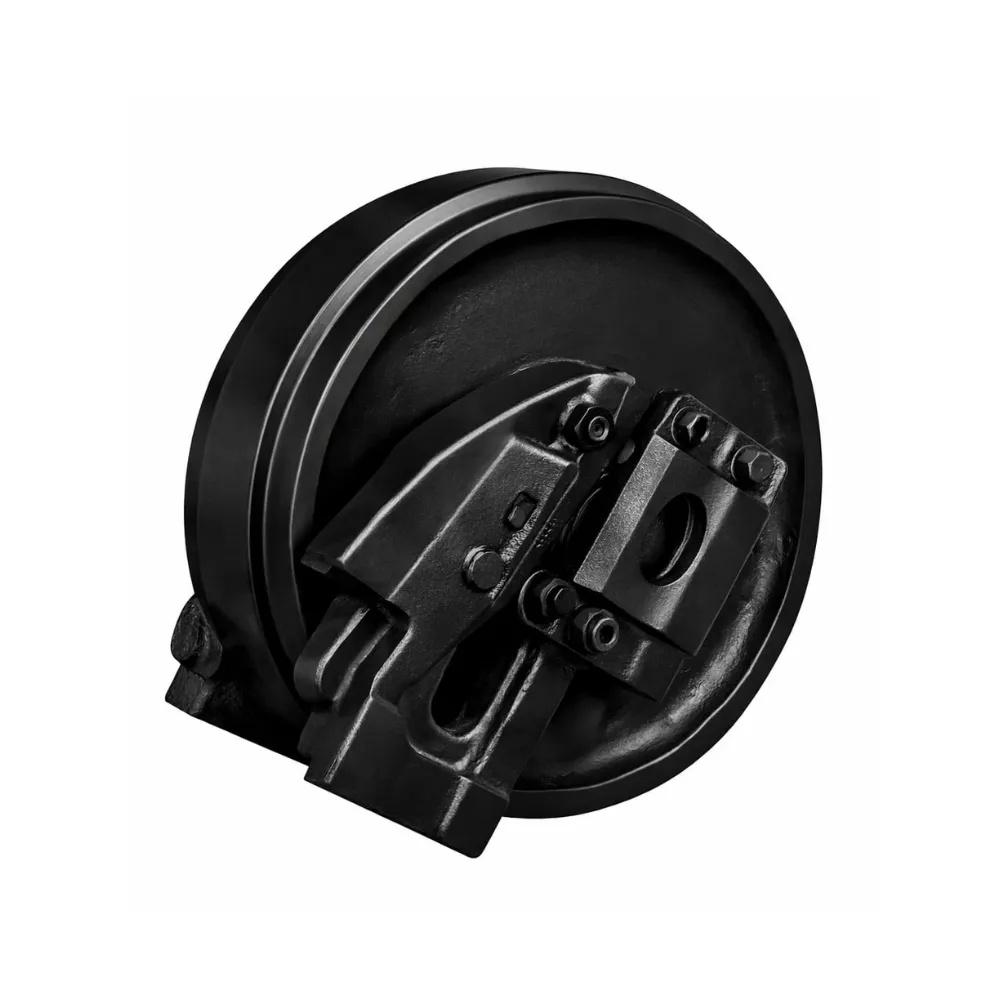

Idler

Heavy-Duty Excavator Idlers for Reliable Undercarriage Performance

The idler is the front guide wheel of an excavator's undercarriage — the component that keeps the track chain moving in the correct path, absorbs forward travel loads, and works together with the track tensioner to maintain proper chain tension at all times. At Global Engineering, we supply excavator idlers built to the dimensional and material standards that serious construction, mining, and quarrying operations demand. Whether you are replacing a worn idler on a single machine or stocking for an entire fleet, we have the right part at a fair price, dispatched quickly from Salem, Tamil Nadu.

What Is an Excavator Idler?

The idler — also called the front idler or guide wheel — is a large-diameter wheel mounted at the front of the excavator's undercarriage frame. It sits on a shaft bracket that is connected to the track tensioner (a grease-filled hydraulic cylinder), which allows the idler to move forward and backward to set and maintain the correct tension in the track chain.
Unlike the drive sprocket at the rear, the idler does not power the track — it guides it. As the track chain comes around from the lower rollers, the idler redirects it smoothly upward and back along the upper return path. It absorbs the impact and thrust loads from forward travel and floating ground conditions, and it is the first component to bear the shock when the machine pushes into material or travels over obstacles.
Most excavators have one idler per side — two in total. Their size, width, and shaft specification vary significantly across machine classes, from compact 1.5-tonne mini excavators to large 50-tonne earthmovers.

Key Features

High-strength alloy steel construction — Shell and hub cast or forged from alloy steel selected for hardness and impact resistance, built to handle the direct thrust and impact loads of forward travel without cracking or deforming
Precision-machined track contact surface — The outer running surface is machined and finished to a consistent profile that guides the track chain centrally, preventing edge loading and uneven chain wear
Sealed internal bearing and shaft assembly — The idler rotates on a hardened shaft with sealed bearing surfaces, keeping the guide wheel rotating smoothly even under high radial and axial loads
Integrated recoil compatibility — Designed with mounting geometry that works correctly with the OEM recoil spring and tensioner assembly, ensuring the idler moves freely under load and returns accurately during recoil events
Heat-treated shell surface — The outer surface is heat-treated to resist the continuous abrasive contact from the track chain, extending service life in sandy, rocky, and abrasive site conditions
OEM-matched dimensions — Outer diameter, hub bore, shaft hole diameter, and width are cross-referenced against original equipment specifications for each supported machine model before supply
Corrosion-resistant finish — Exterior surfaces treated to resist rust during storage and operation in wet, coastal, or waterlogged environments
Wide machine compatibility — Stocked for mini excavators (1T class) through to large machines (50T+), covering all major brands and most common model variants

Benefits

Maintains correct track tension automatically — A correctly fitted idler works with the tensioner to keep chain tension within the OEM-specified range, reducing wear across the entire undercarriage system
Absorbs forward travel shocks and protects the undercarriage — The idler takes the first impact when the machine pushes into material or crosses obstacles, shielding the track rollers, sprocket, and frame from sudden load spikes
Prevents track de-railing — A worn or misaligned idler is one of the most common causes of track chain coming off the undercarriage; a correctly profiled replacement keeps the chain centred and secure
Reduces uneven chain wear — Proper idler geometry ensures the chain runs square, distributing load evenly across links and pins rather than concentrating wear on one edge
Extends service life of the full undercarriage — By guiding the track correctly and absorbing impact, the idler protects the carrier rollers, bottom rollers, sprocket, and track links from accelerated wear
Fits without frame modification — OEM-matched dimensions mean direct replacement on the tensioner bracket without machining, shimming, or adapter plates
Lowers long-term maintenance cost — A quality idler that lasts the expected service life reduces the frequency of undercarriage interventions, particularly important for rental fleet operators managing many machines
Fast sourcing from a single supplier — Order the idler along with other undercarriage components from Global Engineering and reduce procurement time, freight cost, and coordination effort

Why Idler Quality Matters

The idler is the front line of your excavator's undercarriage. Every push, impact, and obstacle the machine encounters passes through it first. A low-quality idler doesn't just wear out faster — it takes other components down with it.

Cheap steel cracks, it doesn't just wear — A poorly alloyed shell fractures under impact, de-tracks the machine, and damages the chain. A quality idler absorbs those shocks without failing.
Wrong surface profile destroys your track chain — If the running surface isn't machined correctly, the chain rides off-centre from day one, wearing links unevenly and shortening chain life well before its time.
Incorrect dimensions create problems you can't adjust away — A slightly undersized idler throws off chain geometry. Too wide and it contacts the frame. These issues mean pulling the part out and starting over.
Poor seals fail in wet conditions — Indian site work often means water, mud, and monsoon ground. Inferior shaft seals let contamination into the bearing, leading to seizure and groove damage on the chain.
A cheap idler costs more in the long run — One that lasts half the hours means two purchases, two installations, and two rounds of machine downtime — often mid-project, where delays cost more than the part ever did.

Why Choose Global Engineering?

Since 2007, we have been Tamil Nadu's go-to source for excavator undercarriage spare parts — trusted by dealers, rental fleet operators, and contractors who need the right part, fast.

Verified suppliers: Every part meets OEM material and dimensional standards — no shortcuts, no guesswork.
Fair pricing: We work directly with manufacturers so you get quality without overpaying.
Everything under one roof: Idlers, carrier rollers, track rollers, sprockets, track links, bucket bushes — one order, one supplier.
Fast response: Phone, WhatsApp, or email — we respond quickly because we know downtime is expensive.
India-wide delivery: Dispatched from Salem, delivered reliably across the country.
15+ years of expertise: We know undercarriage parts inside out — you'll always speak to someone who can confirm the right part for your machine on the spot.
