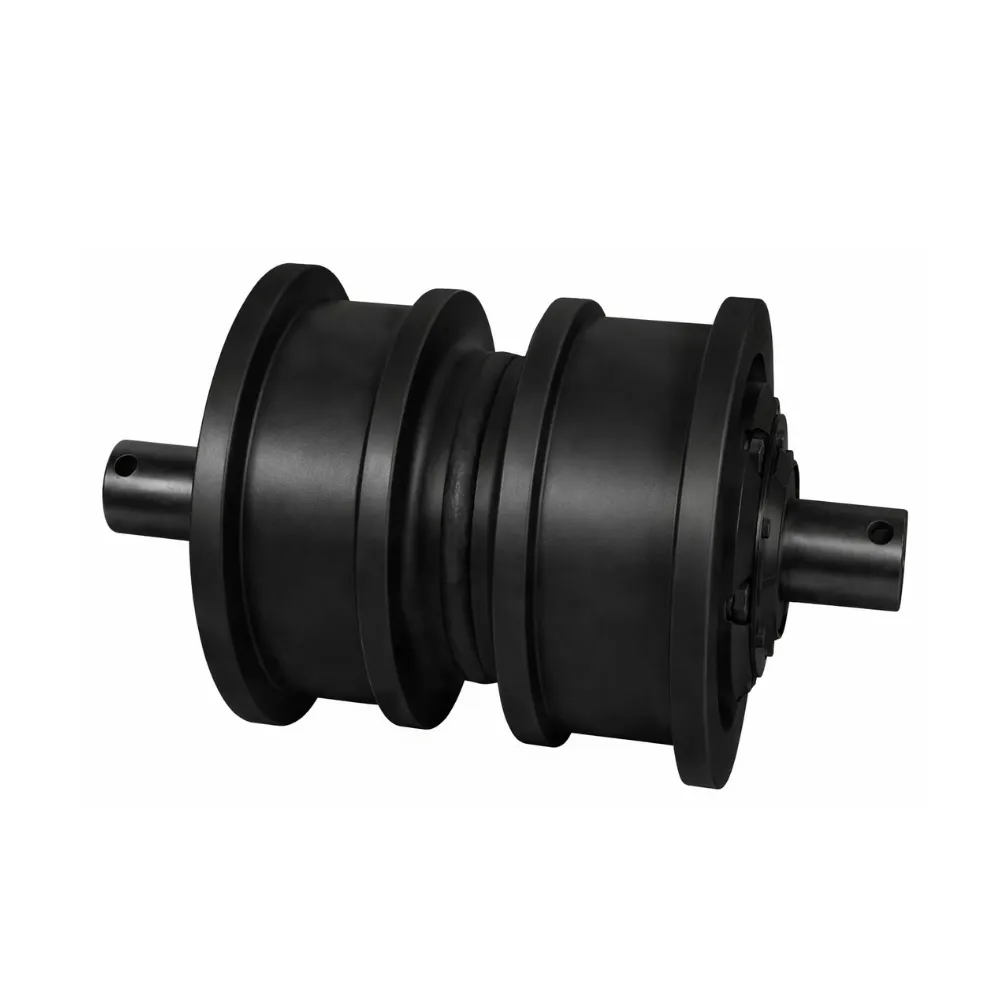

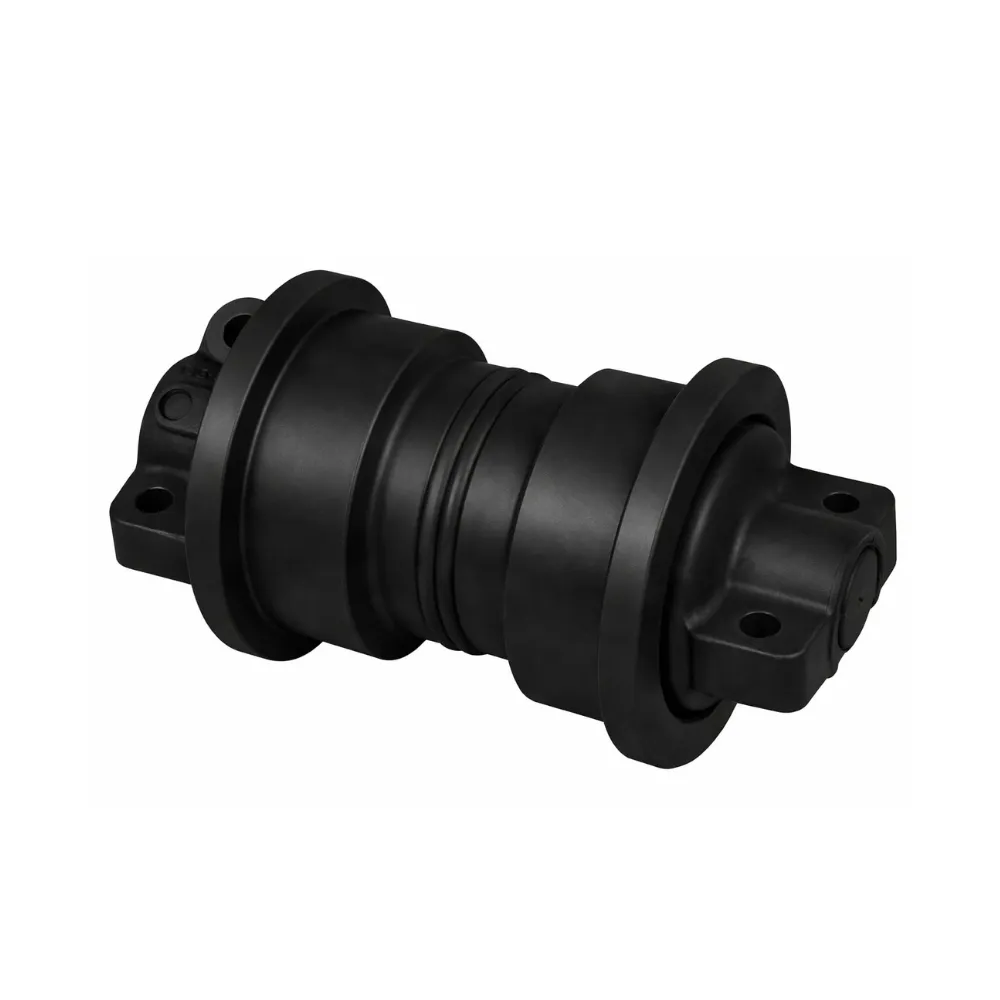

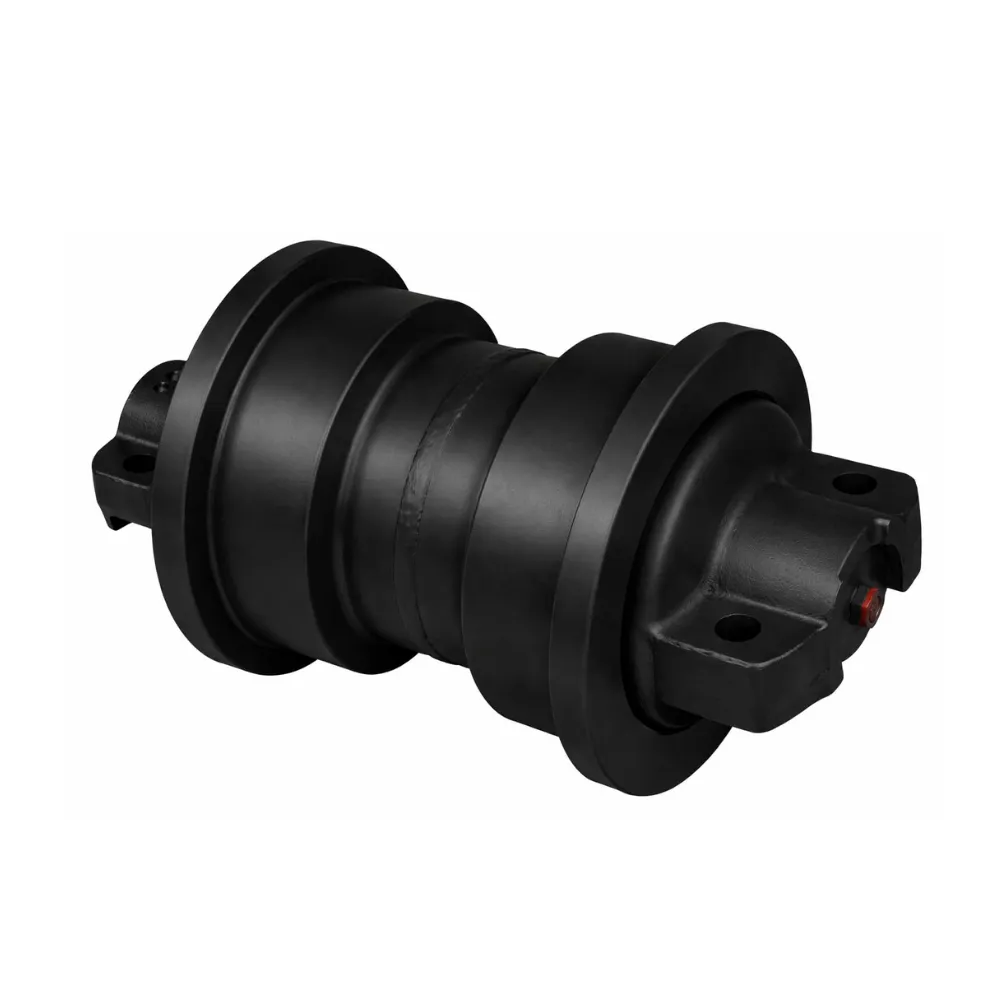

Track roller

High-Quality Track Link and Plate for Excavators

The track roller — also called the bottom roller or lower roller — is one of the most load-bearing components in an excavator's undercarriage. Mounted in a row along the bottom of the undercarriage frame, it carries the full weight of the machine as it travels, distributes that load evenly across the track chain, and keeps the chain running true on every surface the excavator works on. At Global Engineering, we supply track rollers built from high-strength alloy steel, sealed for long service life, and dimensionally matched to OEM specifications — so your machine carries its load correctly and your undercarriage lasts as long as it should.

What Is an Excavator Track Roller?

The track roller is also called the bottom roller or lower roller. It is a sealed steel cylinder mounted in a row along the underside of the excavator's undercarriage frame, between the front idler and the rear sprocket. Most machines carry four to seven rollers per side.
It does two jobs simultaneously:

Carries the machine's full weight — pressing it down through the frame, through the roller, and into the track chain beneath
Guides the track chain — keeping the lower run running straight and preventing it from shifting sideways during travel
It is the most heavily loaded component in the entire undercarriage — far more so than the carrier roller above, which only supports the light, returning upper run of the chain.

What it's made of:
Outer shell — Hardened steel cylinder that rides directly on the track chain rail surface
Internal shaft — Fixed to the undercarriage frame; the shell rotates around it on sealed bearings
Sealed bearing assembly — Allows smooth rotation under full machine weight
Duo-cone face seals — Keep grease in and block mud, sand, and water out
Flanges— Guide the chain laterally and stop it drifting off the roller

Key Features

High-strength alloy steel shell — Forged or cast from high-grade alloy steel and heat-treated to the hardness level needed to carry continuous high radial loads without deforming, cracking, or developing flat spots across thousands of operating hours
Induction-hardened outer surface — The track-contact surface of the shell is induction-hardened to a controlled depth, maximising resistance to the abrasive wear from constant contact with the moving track chain link rail surfaces
Duo-cone floating metal face seals — Precision ground metal face seals at both ends of the shell maintain a self-compensating, rotating contact face
That keeps grease in and contaminants out — the same seal standard used in OEM-grade undercarriage components
Factory-filled, sealed lubrication — Each roller arrives pre-filled with the correct grade of grease and permanently sealed — no grease nipple, no field maintenance requirement, no risk of a forgotten greasing interval draining the bearing
Hardened and ground internal shaft — The central shaft is induction-hardened and precision-ground to maintain accurate bearing surfaces under the deflection loads generated by the full machine weight pressing down through the roller
Single and double flange options — Both single-flange and double-flange configurations available to match the correct positioning requirements for each machine model's roller row layout
OEM-matched dimensions — Shell outer diameter, bore diameter, shaft dimensions, flange width, and mounting interface are cross-referenced against original equipment specifications for every supported machine model before supply
Corrosion-resistant surface treatment — Exterior surfaces treated to resist oxidation during storage and in wet operating environments including paddy fields, coastal sites, river works, and monsoon-season construction.

Key Benefits

Carries the full machine weight reliably — High-strength shells and precision bearing assemblies distribute the machine's operating weight evenly across the full roller row, preventing stress concentrations that lead to shell cracking or bearing seizure
Keeps the track chain running true on all terrain — Correctly profiled flanges guide the chain laterally at every point in the lower run, preventing the chain from drifting, twisting, or riding up the flange edges during travel across slopes, soft ground, and uneven surfaces
Extends the life of the full undercarriage — A track roller running in good condition keeps the track chain at the correct height and lateral position, protecting the chain links, pins, bushings, idler, and sprocket from the accelerated wear caused by a chain running out of alignment
Reduces shock loads on the machine structure — Smooth, free-rotating rollers absorb the micro-impacts of the chain link joints passing under load; seized or damaged rollers transfer those impacts directly into the undercarriage frame and the machine superstructure
Sealed lubrication eliminates field maintenance risk — Factory-sealed grease means the bearing life does not depend on a service crew remembering
to grease each roller on schedule — the most common cause of premature roller failure in the field
Single-source ordering with full undercarriage range — Order track rollers alongside carrier rollers, idlers, sprockets, and track links from Global Engineering in one transaction, reducing procurement effort and freight cost
Fits without modification — OEM-matched shell diameter, bore, and mounting dimensions mean the roller installs directly on the undercarriage bracket without shimming, machining, or rework
Fast dispatch across India — Stocked in Salem, Tamil Nadu, and shipped to dealers and contractors nationwide with short lead times and reliable freight partners

Why Track Roller Quality Matters

The bottom roller carries the machine. Every tonne of the excavator's operating weight passes through the roller row on every metre of travel. Quality at this position is not optional. It is what determines how long the entire undercarriage system lasts.
A soft or poorly hardened shell develops flat spots under load
— Once a flat spot forms on the outer surface, the roller no longer rotates smoothly. It bounces on the chain with every revolution, creating impact loads on the chain links and transmitting vibration into the machine frame. A correctly hardened shell maintains its round profile across the full service life.
Inferior seals allow contamination into the bearing — Indian construction environments include sand, crushed rock, paddy field silt, and monsoon-season mud, all of which will penetrate an inadequate seal within hours of operation. Once contamination enters the bearing cavity, wear accelerates rapidly and the roller seizes well before its expected service life.
A seized roller drags on the chain instead of rolling — When a roller bearing fails and the shell locks, the track chain slides across the stationary roller surface on every pass. This creates deep groove wear on both the chain link rail surface and the roller shell simultaneously, damaging two expensive components instead of one.
Incorrect shell diameter disrupts chain geometry — A roller that is undersized in outer diameter lowers the chain at that point in the roller row, creating an uneven load path along the bottom of the undercarriage. The chain rides lower at that position, concentrating wear on the links that contact the low roller and on the idler and sprocket that now receive an unevenly tensioned chain.
The total cost of a low-quality roller is always higher — A roller that fails in half the expected hours means two replacements, two installation labour costs, and two rounds of machine downtime, plus the collateral chain and frame damage that accumulates during the degraded period of the first roller's life. Quality pays for itself many times over across the machine's operating life.
At Global Engineering, the track rollers we supply come from manufacturers who hold the alloy specifications, heat treatment standards, seal designs, and dimensional accuracy that sustained undercarriage performance requires. Every batch is verified before it enters our inventory. Our dealers and contractors come back to us because the rollers they fit from us deliver the service life they expect.

Signs Your Excavator Track Roller Needs Replacement

Oil weeping from the roller end faces — The duo-cone seal has begun to fail; the bearing is losing its lubrication protection and will seize if operation continues
Flat spots or deep groove wear on the shell surface — The roller has either seized and been dragged across the chain, or been running misaligned; flat spots cause vibration and chain impact loading on every revolution
Visible wobble or lateral movement during travel— The internal shaft or bearing has worn, allowing the shell to oscillate rather than rotate true; creates lateral chain loading and uneven flange wear
Abnormal knocking or grinding from the bottom of the undercarriage — Impact noise from the roller row during travel indicates a seized shell, cracked surface, or bearing failure
Uneven wear across the track chain lower run — Specific chain links showing more wear than adjacent links indicates a roller that has stopped rotating and is dragging at that position
Visible cracks or fractures on the shell — Impact damage from rock or concrete; a cracked shell under full machine weight is a structural failure risk requiring immediate replacement
Machine vibration during travel on flat ground — When ground conditions do not explain vibration, the roller row is often the source — flat-spotted or seized rollers create a regular, rhythmic vibration pattern
Increased fuel consumption without other explanation — Seized or heavily worn rollers increase rolling resistance on the track chain, forcing the final drive to work harder for the same travel output

Replacing worn track rollers before they seize or crack protects the track chain, frame, and final drive from the collateral damage of a failed roller continuing in service.
